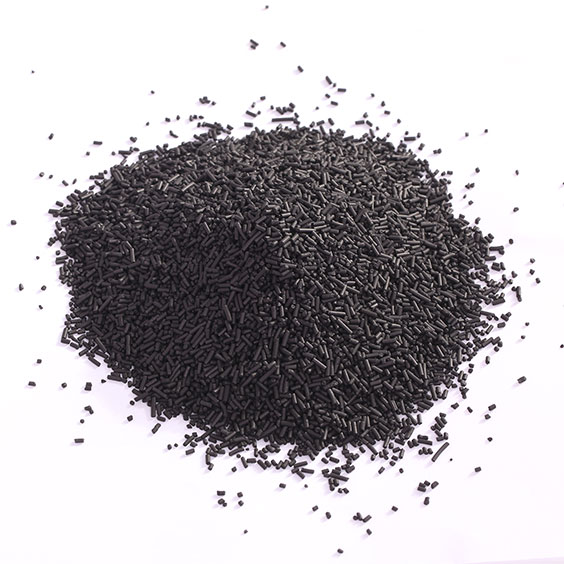

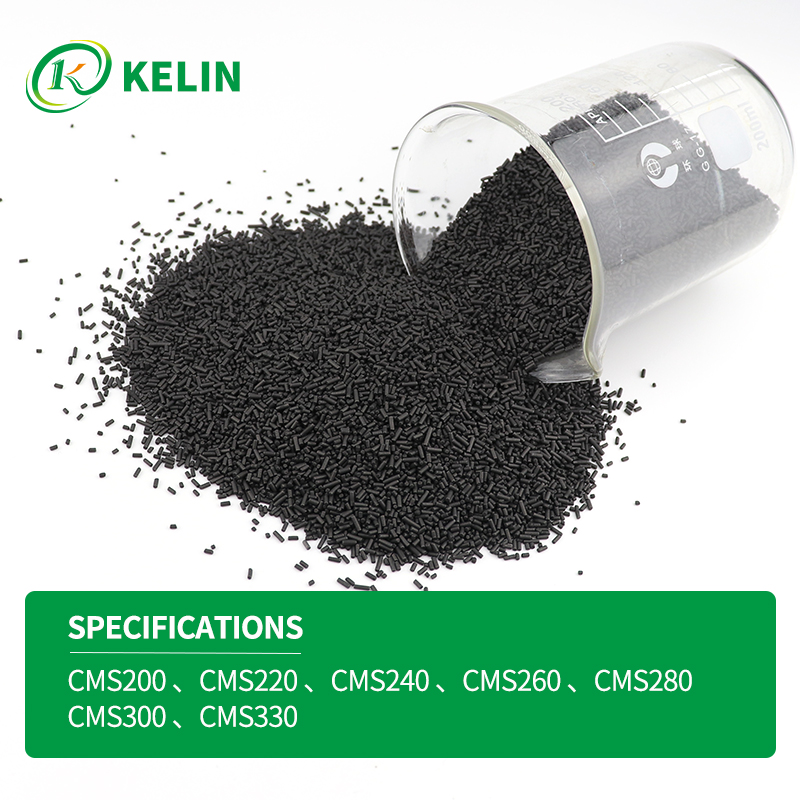

CMS carbon molecular sieve

It’s main component is C elemental, and the appearance is black Pellet.

As containing a large number of micropores with a diameter 4 angstroms,the holes have a strong instantaneous affinity for oxygen molecules and can be used separate O2 and N2 in the air.PSA(pressure swing adsorption device) is used in industry to produce N2.

Inquiry Now Send Mail >

Specification

Model Adsorption pressure Nitrogen Purity (%) Nitrogen generation ratio (M³/Mt.Ht) Air/N²
CMS-200 0.75-0.8 95 360 1.75
97 320 2
98 240 2.3
98.5 235 2.34
99 225 2.41
99.5 200 2.6
99.9 110 3.9
99.99 70 4.8
99.999 40 7
CMS-220 0.75-0.8 95 380 1.75
97 340 2
98 260 2.25
98.5 255 2.29
99 245 2.38
99.5 220 2.55
99.9 140 3.7
99.99 100 4.7
99.999 55 6.8
CMS-240 0.75-0.8 95 420 1.75
97 360 2
98 285 2.2
98.5 275 2.25
99 260 2.35
99.5 240 2.5
99.9 155 3.5
99.99 110 4.65
99.999 65 6.7
CMS-260 0.75-0.8 99 320 2.2
99.5 260 2.5
99.9 175 3.5
99.99 120 4.6
99.999 70 6.7
Diameter 1.1-1.3 Bulk density 660-700G/L Test temperature
Adsorption time 2X58s Compressive strength ≥75N/grain ≤20℃

Introduction

Carbon molecular sieve has large nitrogen production capacity, high nitrogen recovery rate and long service life. It is suitable for various types of PSA nitrogen generators and is a product of PSA nitrogen generators. Carbon molecular sieve air separation nitrogen production has been widely used in petrochemical, metal heat treatment, electronics manufacturing, food preservation and other industries.
